JL/ JT Hydro Assist Steering - Axle Mount
JL JT Hydro Assist Steering - Axle Mount.
JL JT Hydro Assist Steering - Axle Mount.

JL/ JT Hydro Assist Steering - Axle Mount

NV-JL-00016


Regular price$129.99
/
Finish
  • Est. Lead Time: Bare (1-2 Business Days), Powdercoat (2-3 Weeks)

Hydro Assist Steering - Axle Mount for JL Wrangler & JT Gladiator


These are laser cut, CNC formed, and hand welded with pride right here in the USA from 1/4" Thick High Strength HRPO Steel.

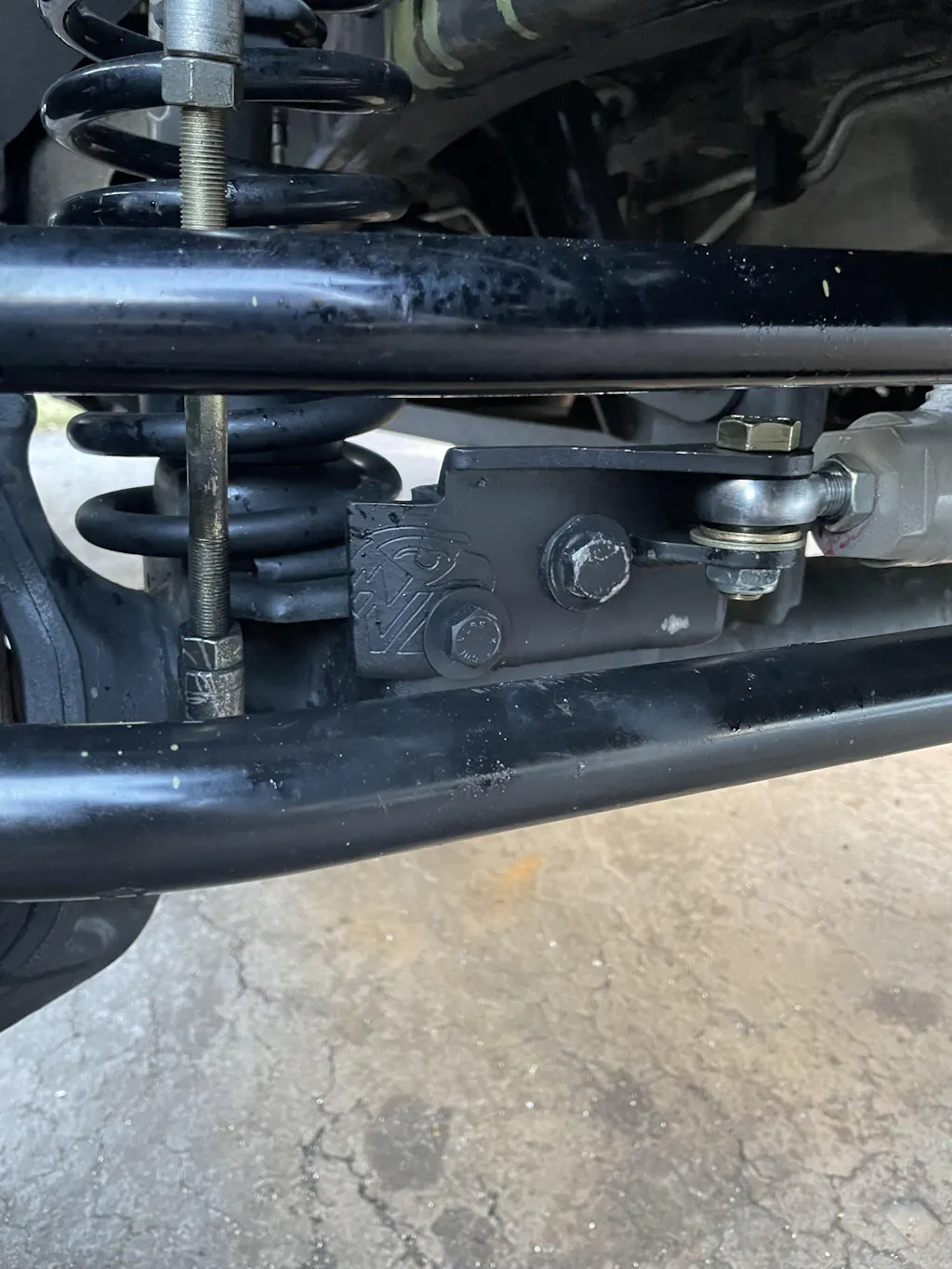

This bracket ties into 2 factory mounting points: the sway bar and the lower trackbar mounting position. This requires no drilling or welding and includes the longer bolt required for proper thread engagement of your lower trackbar bolt. This bracket uses a 1" mounting width and 5/8" bolt hole for ram mounting.

Additional Details

Products are designed and fabricated to fit vehicles that have varying tolerances from the factory, minor hand fitting may be required.

Products are shipped bare metal unless otherwise specified by the customer. Bare metal products may have scratches or surface imperfections as a result of raw material handling, manufacturing, and fabrication. However, these imperfections are easily covered up with a textured powder coat finish. Additional finishing, sanding, and prep work may be required if you wish to also have them finished with a smooth powder coat or paint.

Projected lead times are estimates only, and are subject to changes due to production realities, including material and labor availability and sudden variability in order volume. Lead times are not guaranteed, but we do guarantee that we are hard at work trying to get the best product we can produce and into our customers’ hands as quickly as possible.

All Next Venture Motorsports products are laser cut, CNC formed, and hand-weld with pride in the USA. We are a Colorado-based business, and welcome visitors by appointment at our Grand Junction, CO headquarters. We hope to see you out there on the trail soon!

Customer Reviews

Based on 5 reviews
100%
(5)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Rod Andrew
Hydro Assist Axle Mount

After installing different axles, 39 inch tires and offset bead lock wheels, on my 2021 JLU Rubicon, it was sometimes difficult to turn, when on the slick rock in Moab and Sand Hollow. I began looking to PCS and RNR for a steering assist system. After purchasing the RNR system, I was not satisfied with the mounting solutions I found for the ram. After searching the internet, I discovered the Next Venture steering assist mounting bracket for the JLU. I called Next Venture Motorsports and they had one on the shelf. They shipped it that day and it was on my Jeep and installed in three days from the time I ordered it. Great product and customer service. Thanks

C
Christopher Payne
Beefy! Easy install!

Extremely beefy! Great quality welds and fit and finish came out amazing after some paint. Definitely recommend this for anybody wanting to use hydro on their JL.

X
XIAOPENG WANG
Perfect

I am using redneck ram, and at the same time I installed RPM, because the RPM is too thick, my redneck ram cannot be installed. So I bought this and it's just perfect!

J
Jason Farris
Hydro steering mount

I was in a scramble to find a hydro steering mount as my previous one snapped in half on the way home. Have over $4k tied up in steering components (Steer Smart/Yeti and PSC) I needed something quality. I did some research and spoke to the guys here at NVM and figured if they ran the mount on their Jeep in Colorado and through Moab, I should be fine. Plus, they make them so if their is a weak point a new one can be made beefier. I was impressed with the size and quality for sure. So far so good.

D
Dennis Neu
It's Beef

Awesome mount with the needed strength for a hydraulic ram.
