Introducing our aluminum high line fender flare option for the rear of the JL Wrangler! These flares increase tire clearance over split/modified Rubicon factory flares and actually sit a touch higher as well. These are designed for a slight rear wheelbase stretch (not required) and room to accommodate up to 42" tires with minimal bumpstops since we love our suspension up-travel. If you're going to invest in premium suspension, don't give up an inch of it with bumpstops for a low hanging flare!
- 3/16" Aluminum Laser Cut, CNC Formed, TIG Welded Construction
- 3/16" HRPO Steel Tie In Brackets for mounting strength to resist bending or pulling away from the body
- Increased tire clearance - tested with 42"x14.50 tires and minimal bumpstop additions
- Natural Aluminum with DA Sanded Finish
- Drilling and Rivet Nuts Required For Installation
- Cutting optional but not required
- Mounts Tie in with our JL Rear Corner Armor (sold separately) and Rocker Armor to better distribute impacts (though the corners and rocker armor are not required for install - but highly recommended)
Minor drilling, as well as use of a rivet nut tool (not included) are required. See the video below for more details!
Please note that the fuel filler door will touch the fender flare when opened (only on JL Rubicon/Sahara models with factory fuel door instead of open-style/exposed fuel cap)

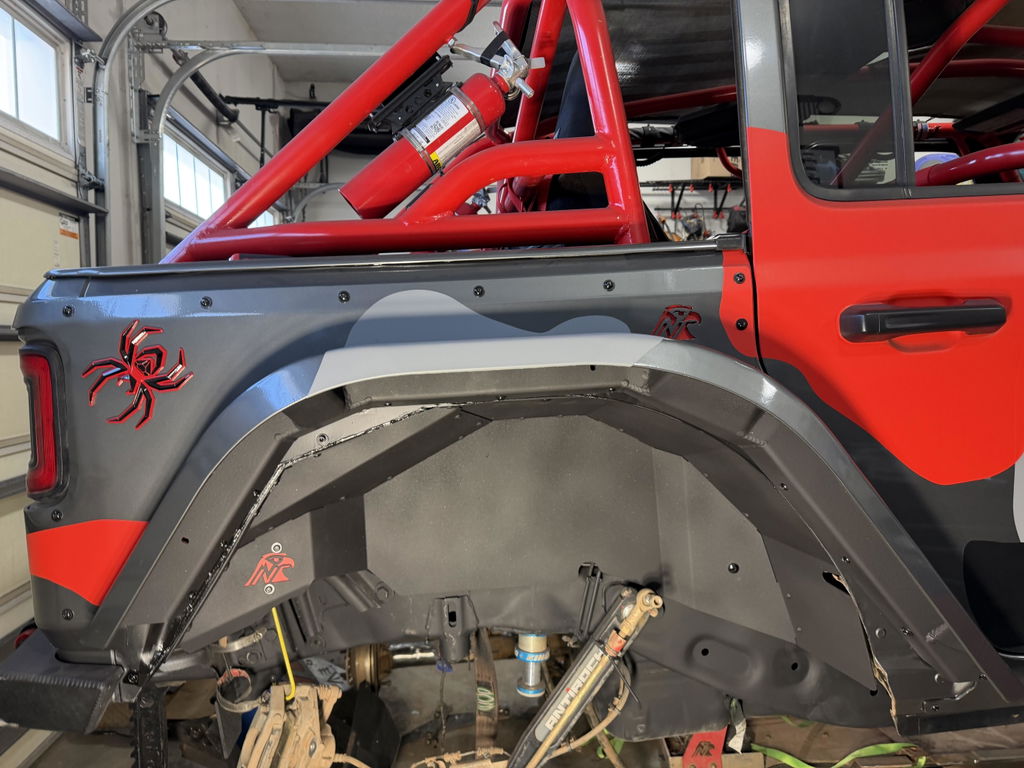

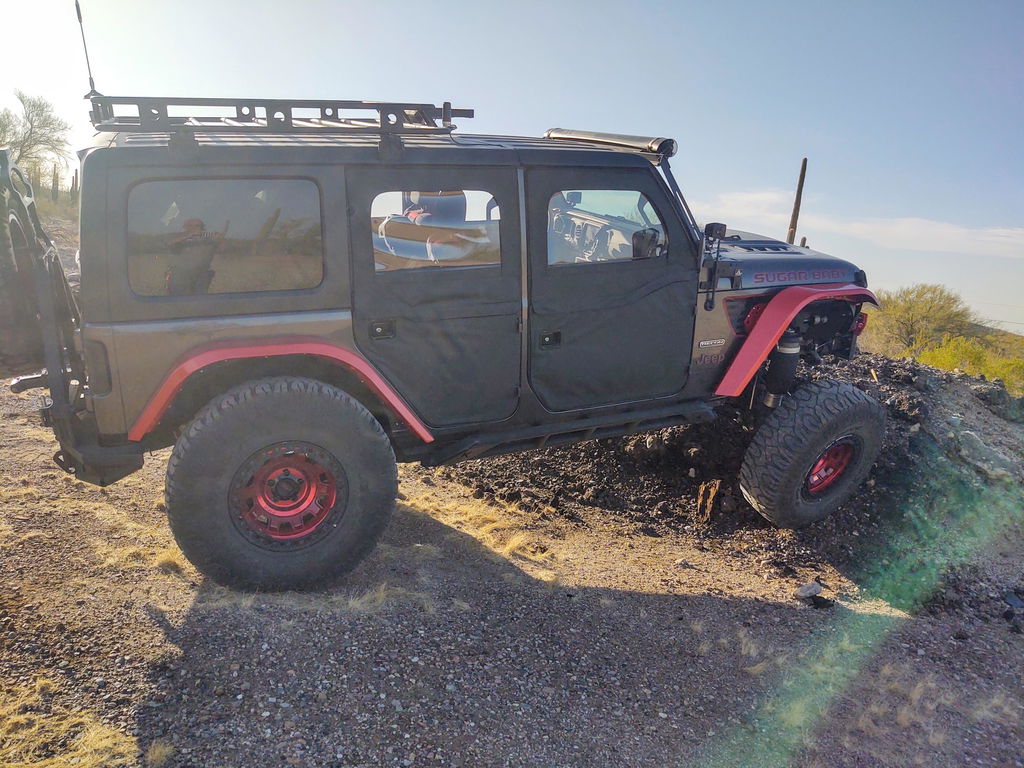

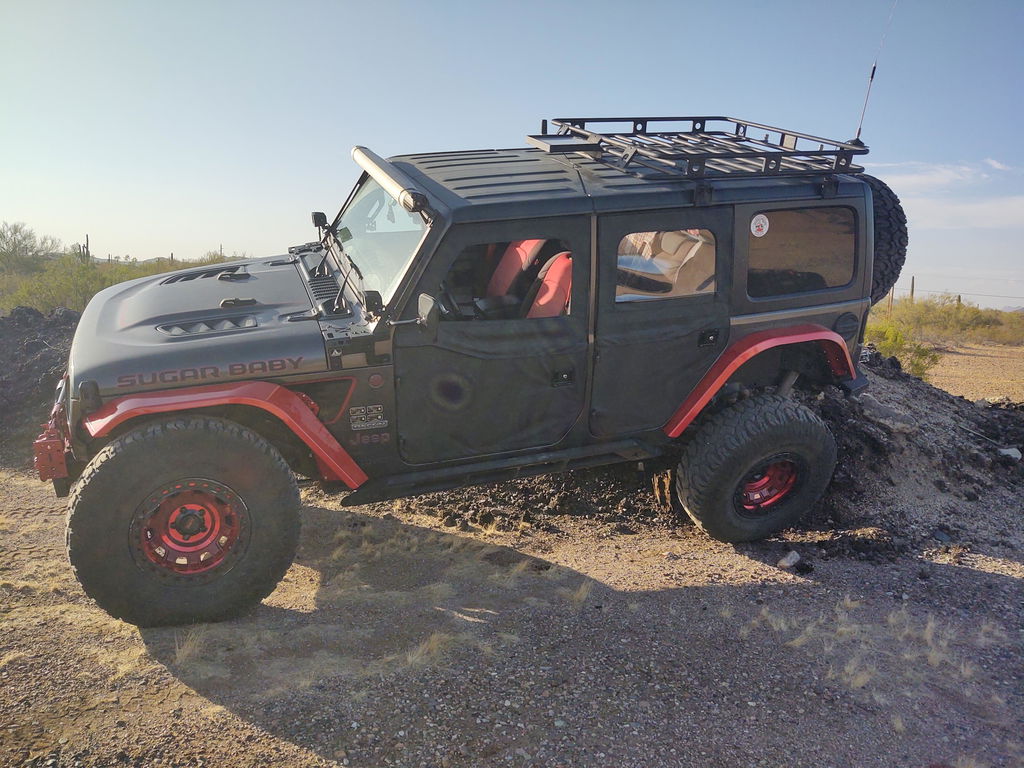

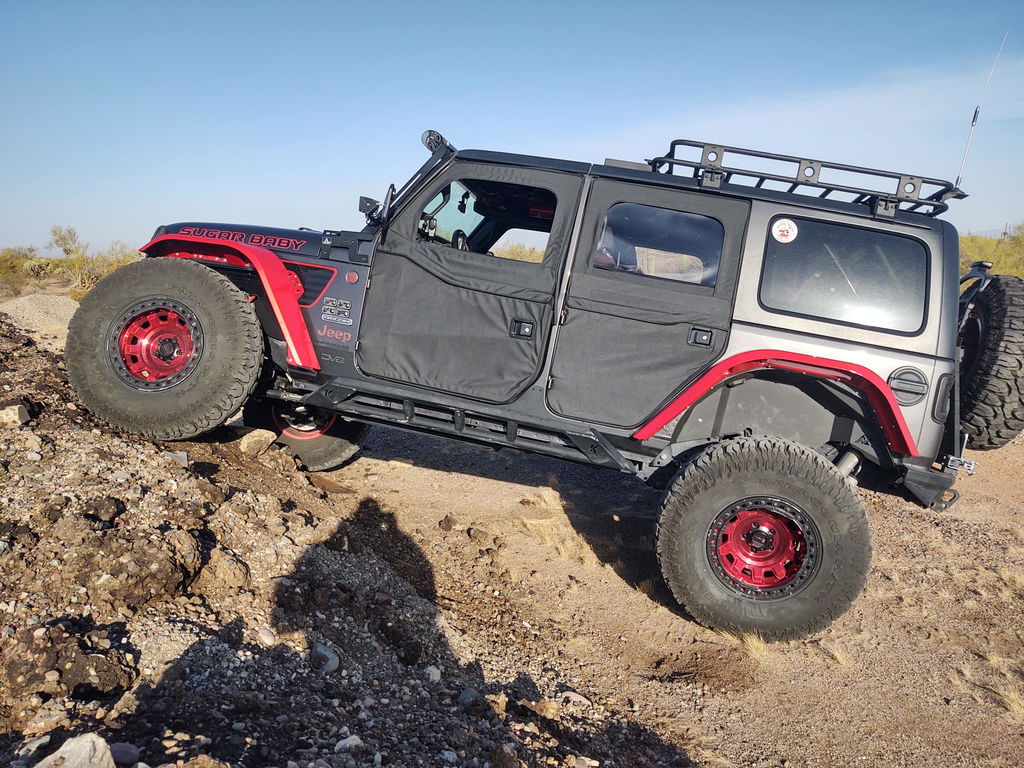

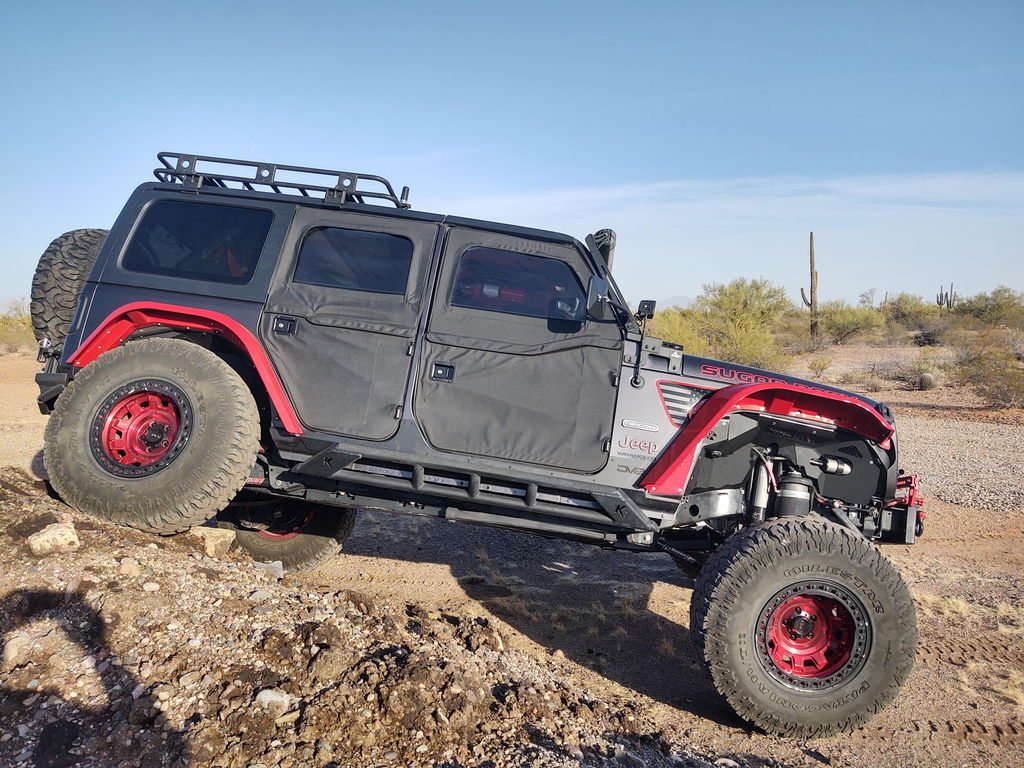

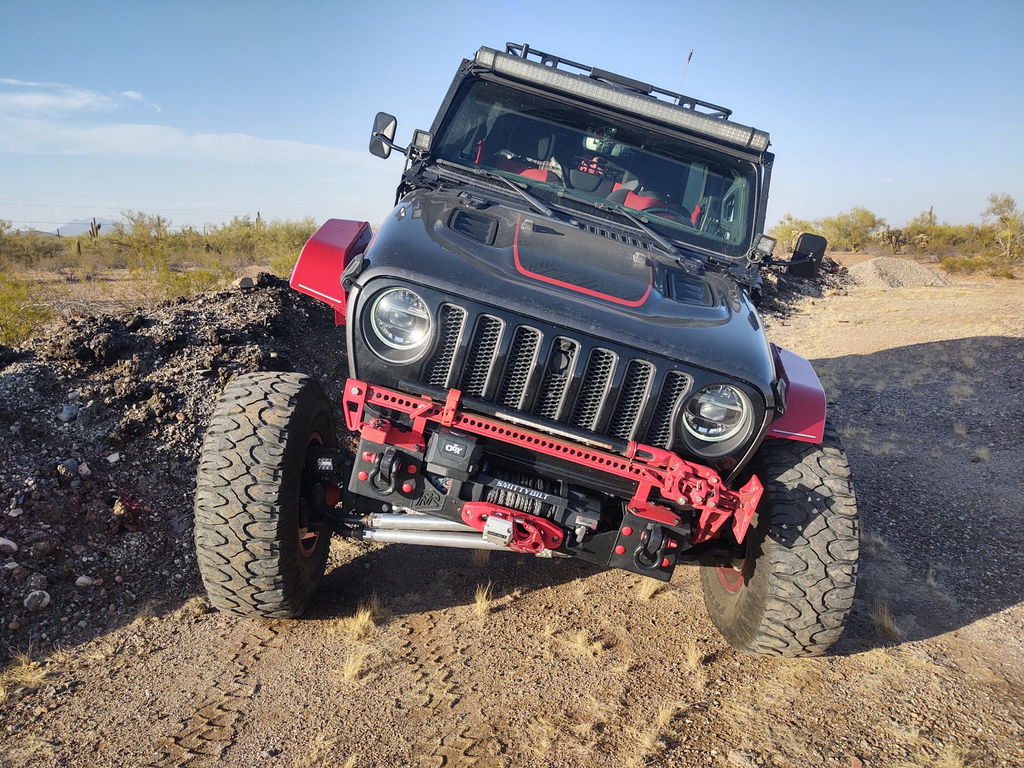

Many of these photos show pre-production units with 37" tires/factory axles and factory bumpstops (Granite/Gray JL) and others are shown with 42x14.50R17 tires (the white JL) on full width 68" wide axles. Production Units shown with 40" tires and 72.5" width axles and additional lift on the "Stepchild"/Red JL.
Customer Reviews
Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M

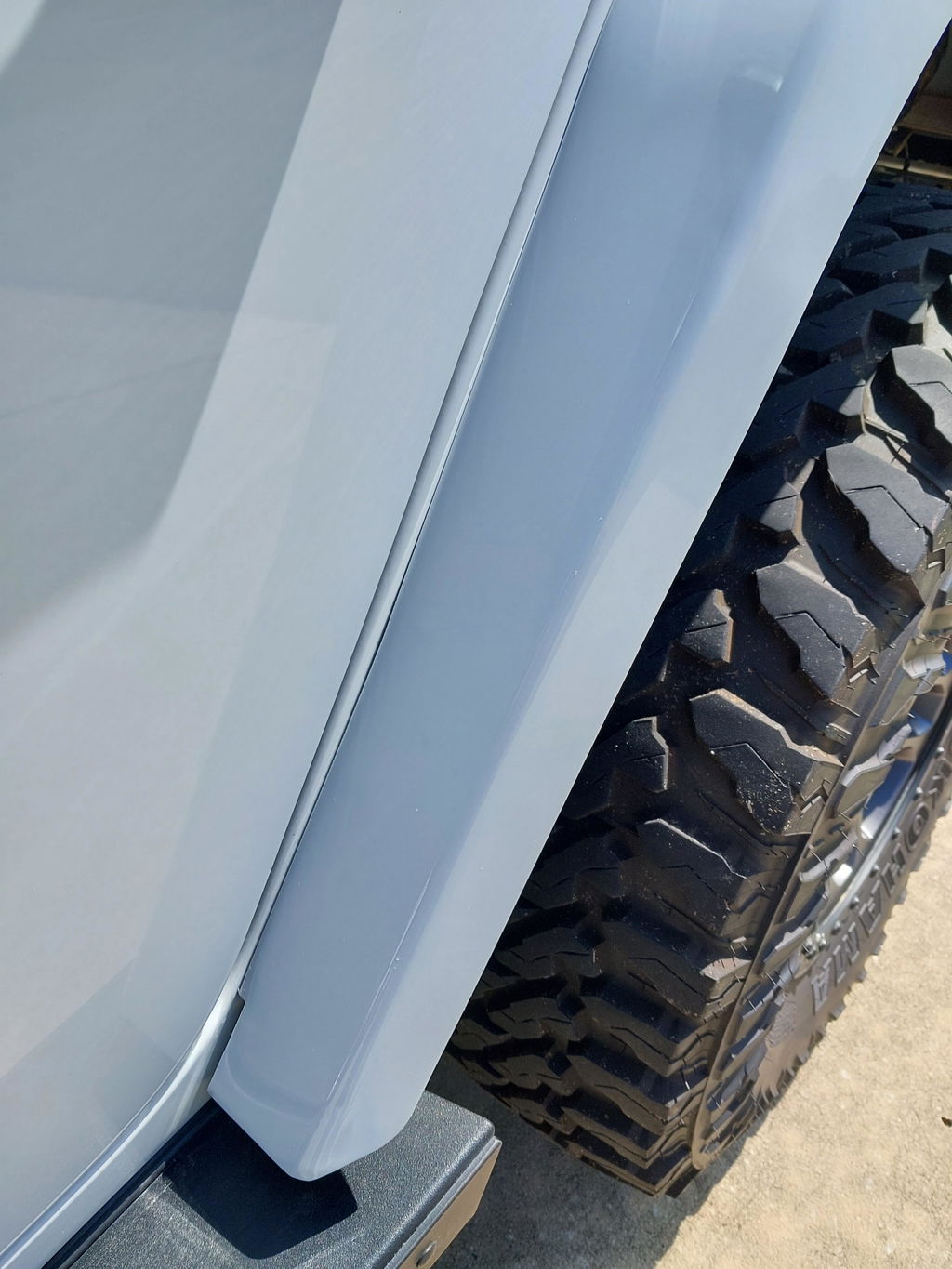

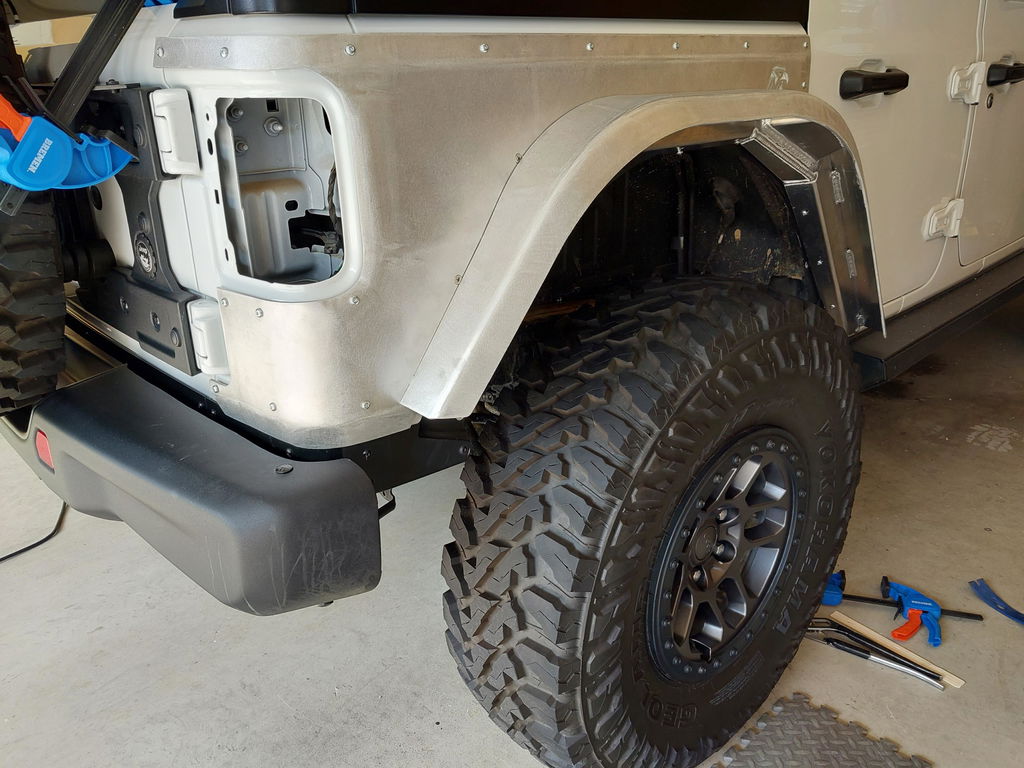

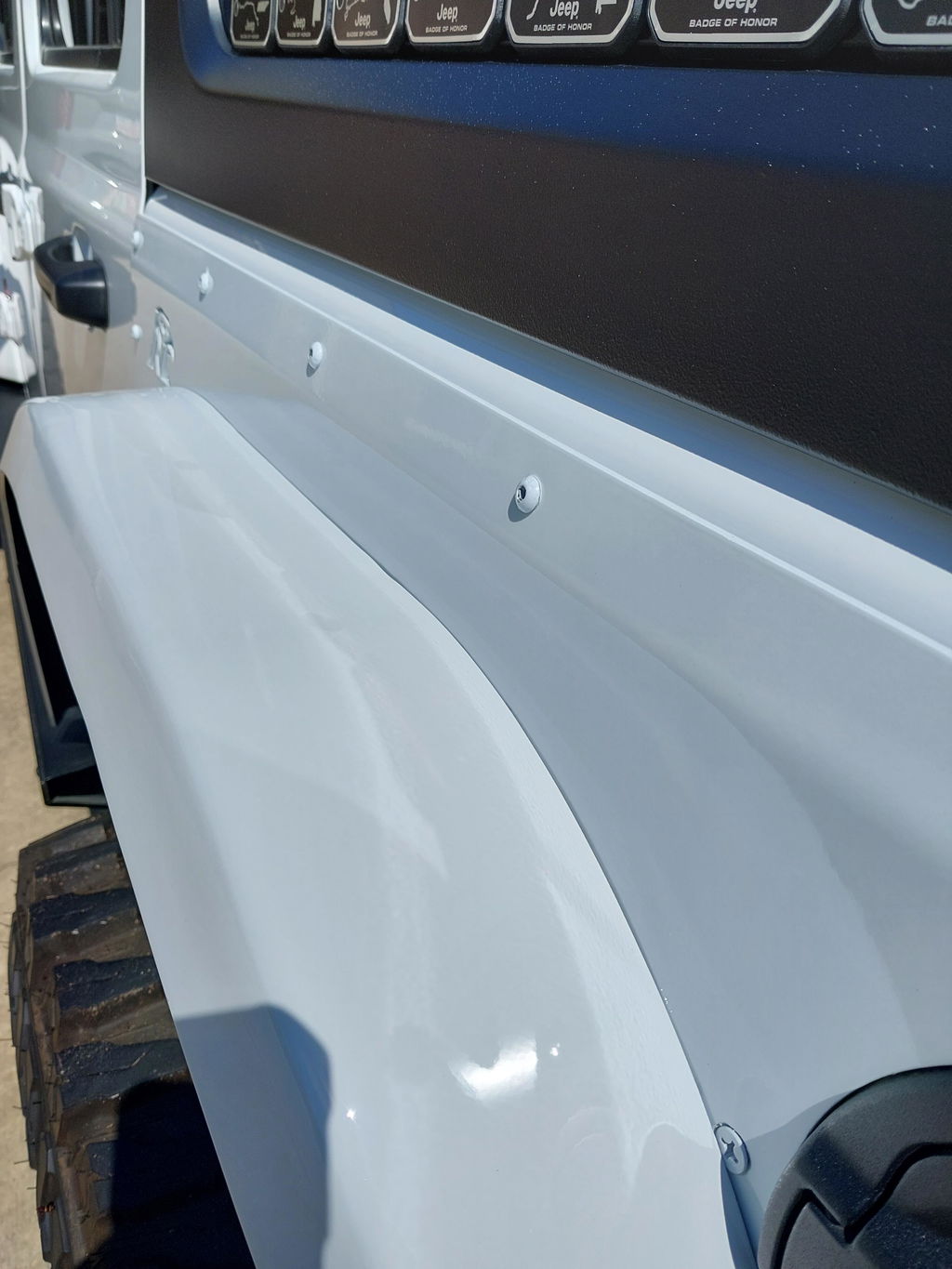

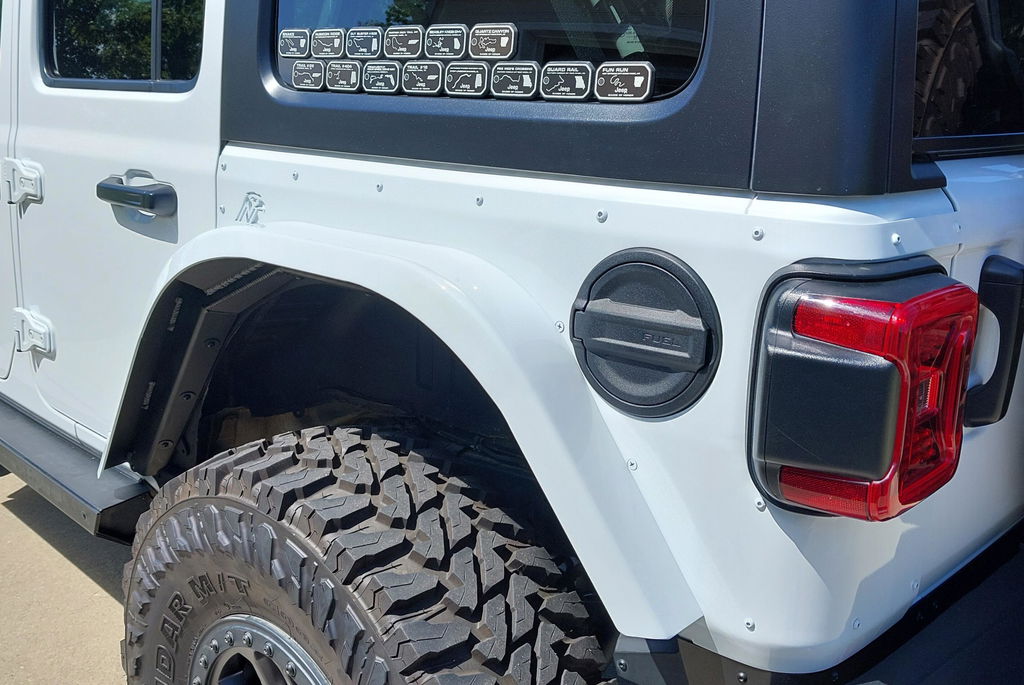

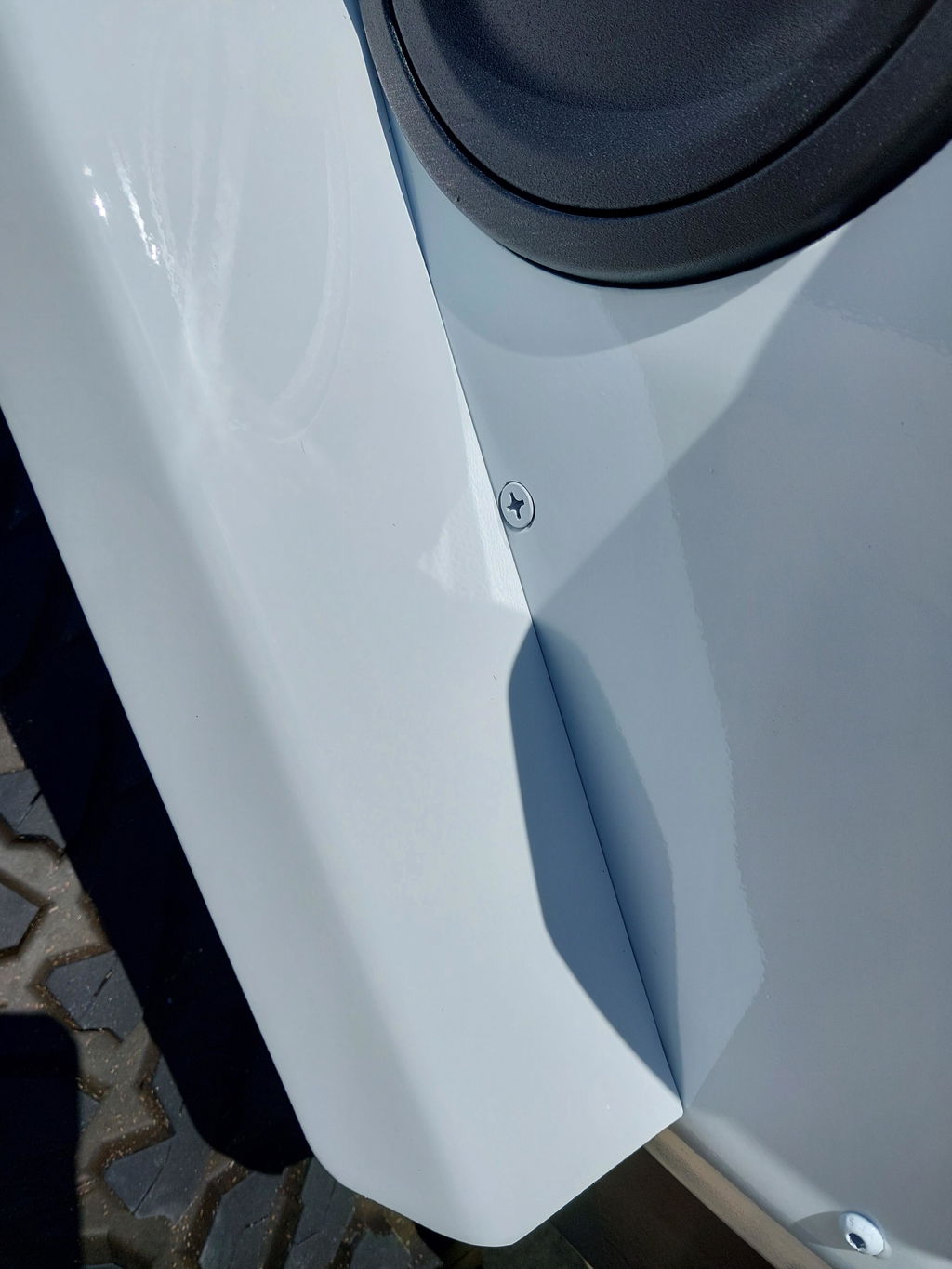

Awesome quality again from Next Venture. These are the 40"+ chop version installed along with Next Venture liners front and rear. Photos show the Jeep with 37" tires as I'm waiting to install the new 39x13.50 redlabels for the EJS Moab trip coming up. There is obviously plenty of room for them now. Install went pretty smoothly considering my OCD issues. Very minor mods were needed to satisfy my over reaching need for perfection. Because I'm not running the NV corner armor the fender install requires the supplied spacers. I added two additional rivet nuts per rear fender near the rear of each fender and recessed the locations of the rivet nut flanges in the spacer and fenders where the fenders meet the body along with an 1/8" neoprene gasket to get a perfectly tight fit and seal to the sheet metal. Overall I'm very happy with final outcome. Can't wait to see what the crew at NV comes up with next. Thank again so much!
J
Really like the Aluminum High Line Fender Flares (Rear). Wasn't planning on buying them but since I was getting the rear corner armor I figured why not. Fenders are high quality and surprisingly sturdy for being aluminum. Driver's side needed half dozen holes messaged because they were half a hole off. But passenger side lined up perfectly except one hole, again half hole off. Install video was good, watched it couple times before starting. Love the way they fit up tight to the armor.
