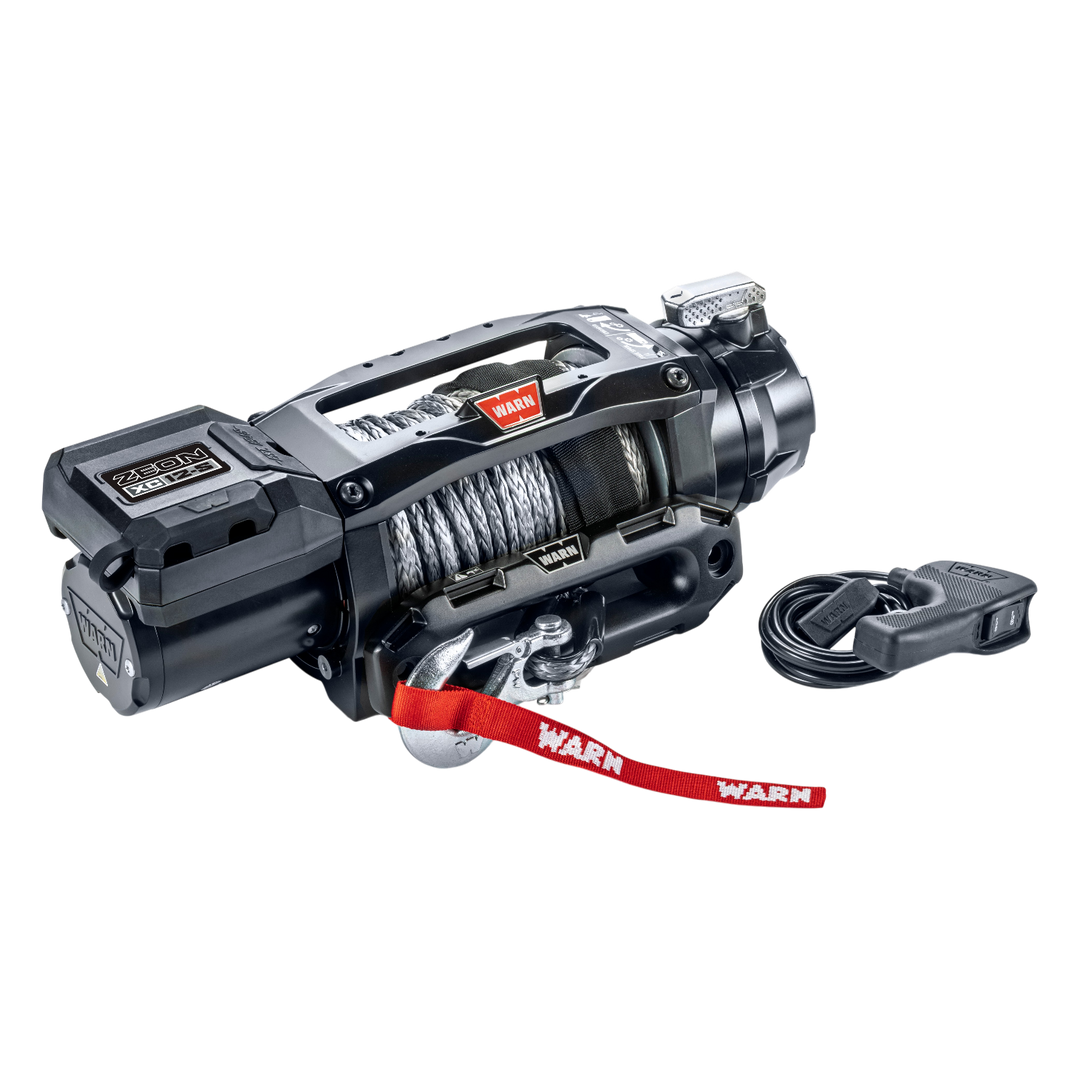

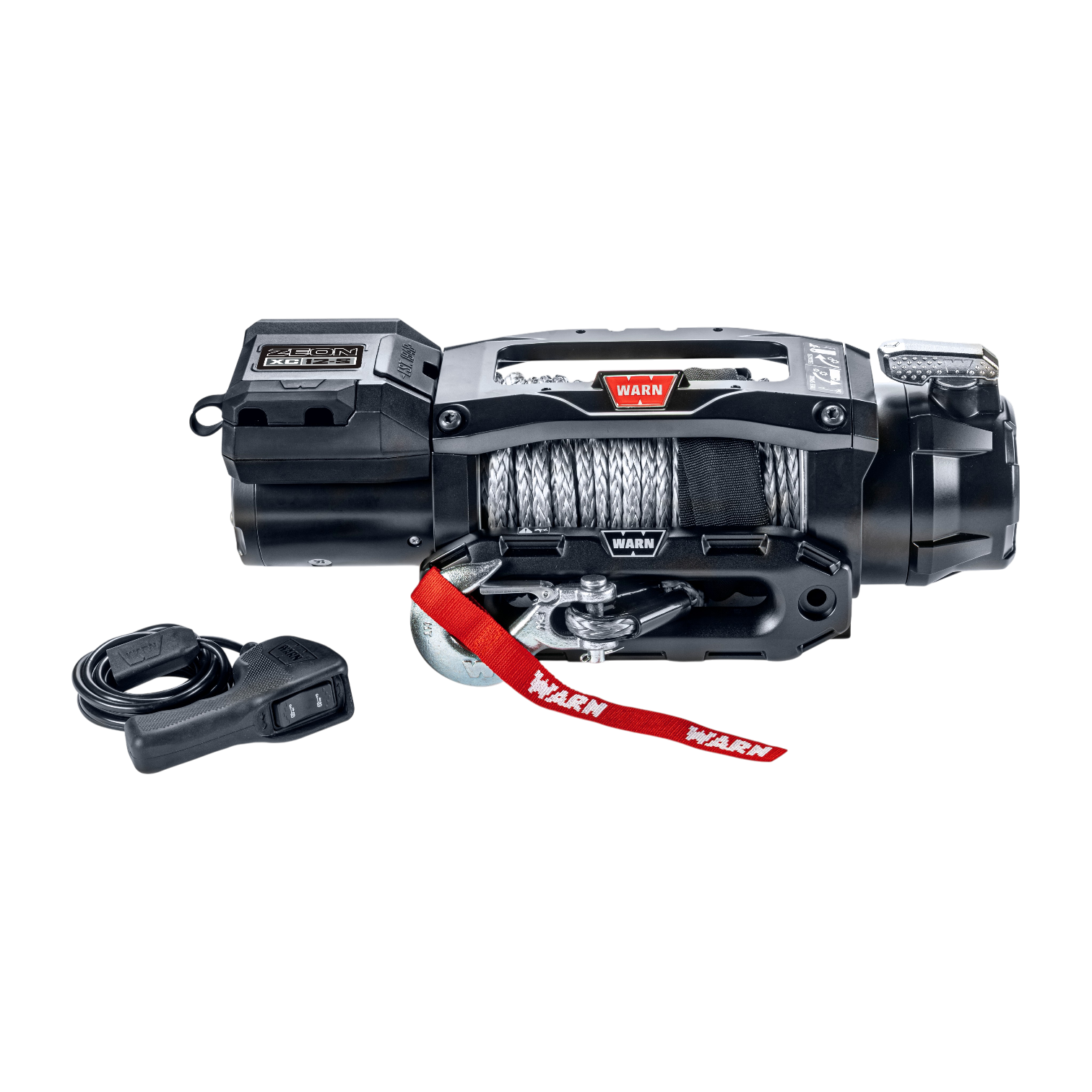

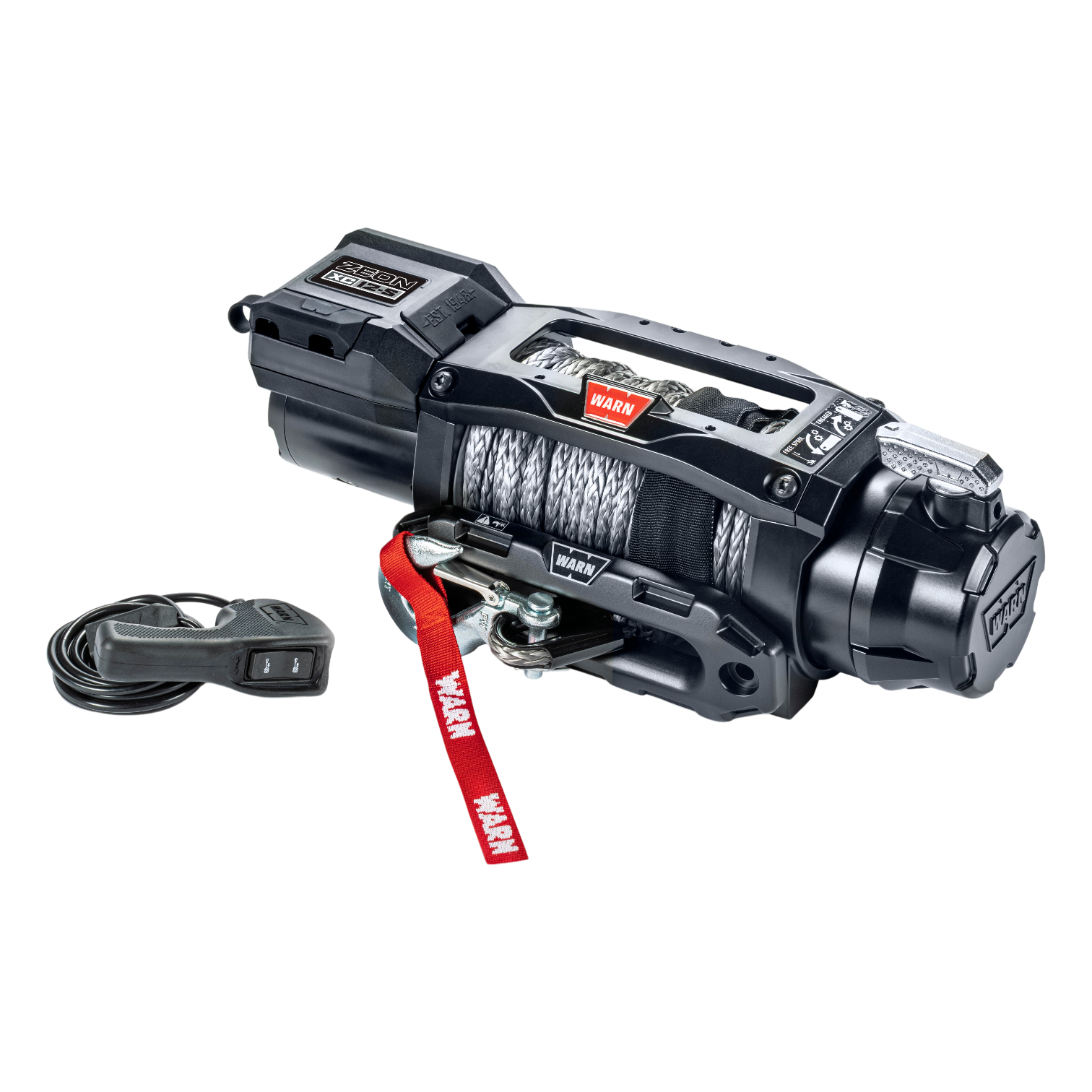

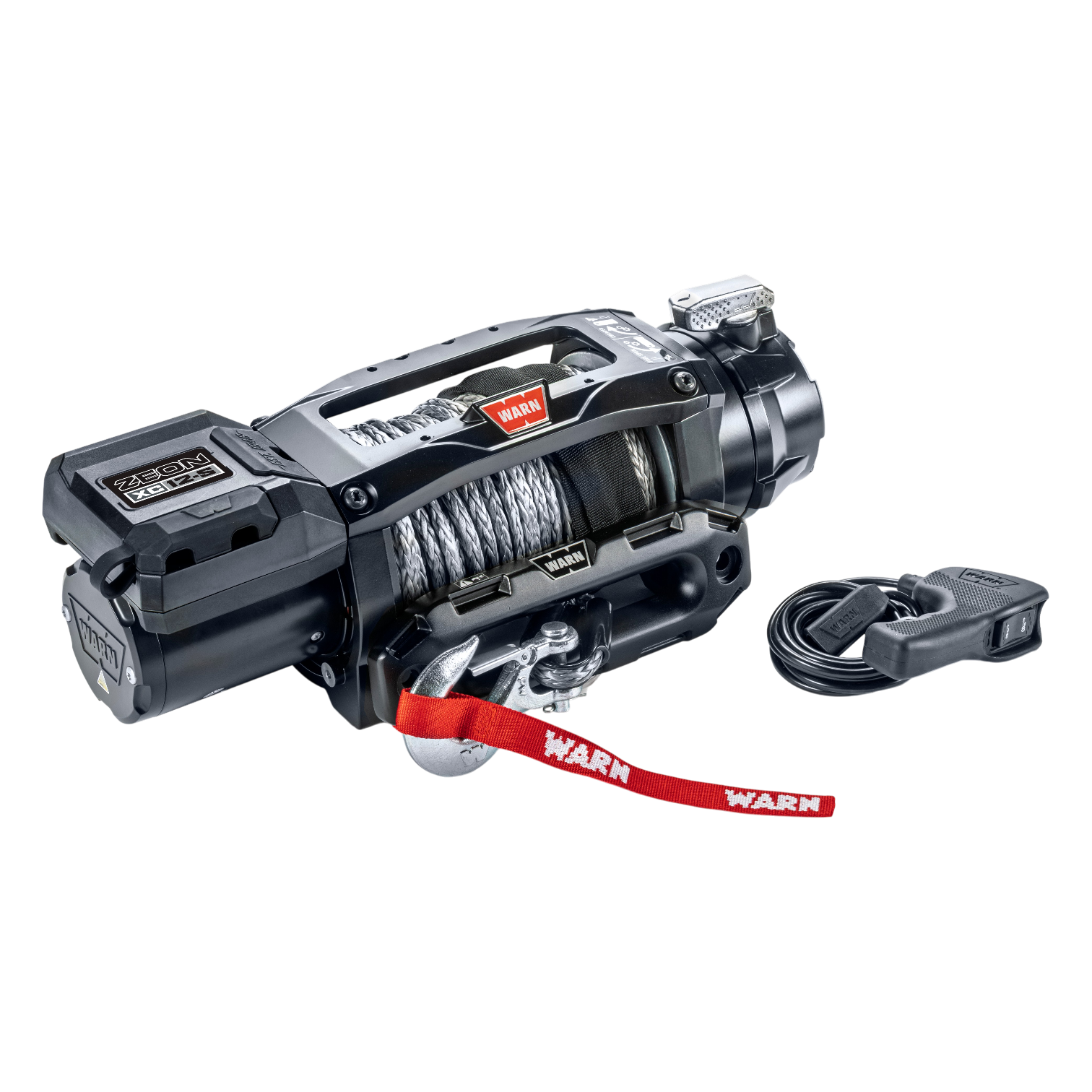

Warn ZEON XC The name to trust when it's all on the line.®
12,000 lbs. single-line pulling capacity. Equipped with 80’ of 3/8” Spydura Pro synthetic rope, Epic hawse fairlead, and ruggedized corded remote.
The compact, low-profile ZEON XC winch delivers unmatched performance with best-in-class line speed and capacity. Engineered, tested, and assembled at the Clackamas, Oregon facility, ZEON XC is a premium, ultra-reliable recovery tool that’s backed by the industry’s leading warranty.
-
All the performance of the ZEON XD winches but in a more compact size for mounting in tighter spaces
-
High-performance, high-efficiency motor and geartrain delivers blazing fast no-load line speeds of up to 40 ft/min—the fastest in its class
-
Reliable waterproof construction features o-ring rubber sealing. The entire winch is IP68 submersion and IP69K high pressure spray rated
-
Corrosion resistant black fasteners meet the highest OEM-grade specifications
-
All-new low-profile control box with WARN exclusive Albright contactor and bus bars for ultimate control, reliability and efficiency
-
Remote socket can be relocated up to 9” away from control pack without disassembly
-
Control pack can be relocated off of the winch using one of WARN’s control pack relocation kit (PN 111872: ZEON XC 31” relocation kit; PN 111991: ZEON XC 78” relocation kit)
-
Motor can be rotated up to 90° forward; control pack moves with motor; transmission can be clocked up to five different positions
-
The ZEON XC fairleads can be utilized for both feet down and feet forward installations — no separate offset fairlead is needed
-
Large diameter aluminum-alloy drum reduces rope wear and helps to dissipate brake heat. The patented rope anchor system is the strongest on the market, and allows for easy rope installation
-
Automatic load-holding cone brake offers excellent control and holding strength
-
Exceptionally durable corded remote with 12’ lead
-
Industry-leading warranty: Limited lifetime mechanical, seven year electrical—all backed by a global service network
SPECIFICATIONS:
| Rated Line Pull (Single Line) | 12,000lbs (5443 kg) |
| Motor | 12V DC, series wound |
| Electrical controls | Albright Contactor |
| Remote Control | Corded remote with 12’ (3.7m) lead |
| Geartrain | 3-stage planetary |
| Gear Ratio | 176:1 |
| Clutch (freespooling) | Rotating Ring Gear |
| Brake | Automatic, six segment mechanical cone |
| Drum diameter/Length | 3.15”/9.0” (80mm/229mm) |
| Rope | 3/8” X 80’ (9.52mm x 24.38m) Spydura Pro Synthetic |
| Fairlead | Epic Fairlead - black anodized, forged aluminum hawse |
| Recommended Battery | 650 CCA minimum for winching |
| Battery leads | 2 gauge, 72” (1.83m) |
| Zeon Finish | Satin-black powder coat |
| Corrosion Resistance | 408 hour salt spray, OEM grade fasteners |
| Ingress Protection | IP68/IP69K rated waterproof |
| Warranty | Limited lifetime mechanical, 7 years electrical |
| Zeon Dimensions | length: 22.06" (560.3mm), height: 7.83" (198.8mm) |
| Mounting Bolt Pattern | 10" x 4.5" (254mm x 80mm) |
